EU Plug H03VVH2-F 2X0,75 Black 2,0m

Description

Description

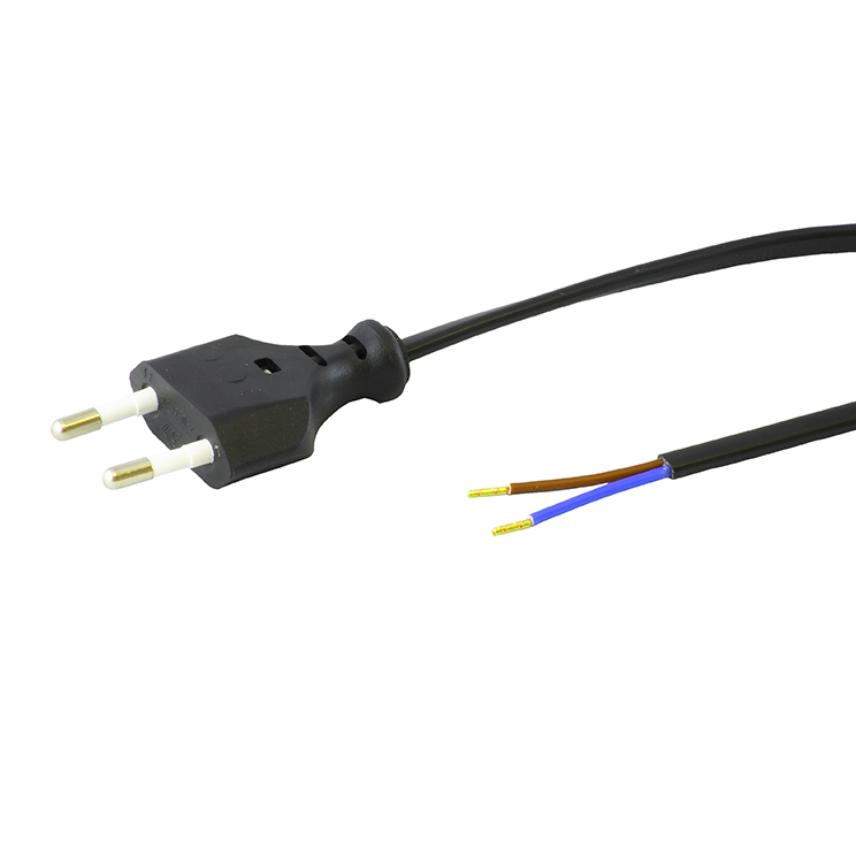

EU Plug 2 Pole EN 50075 H05VV-F 2x0,75 black 2,0m with splices.

European  Plug 2-pole 2,5A 250V
Standard: EN 50075
CERTIFICATED IN ACCORDANCE WITH IEC 60884
Use: Europe, some countries in South America, Africa and Middle East.
Rated Current: 2,5A
Rated Voltage: 250V
Numbers of poles: 2 POLE
Pins: Brass, Nickel Plated, diam. 4 mm.

Cable: H03VVH2-F (SKX).
Rated Voltage Uo/U: 300/300 V
Cross section: 2X0,75
Approval: IMQ ‹har›

2nd end: B+B 2X30 mm incl 7mm end splice.


Test requirements: IEC 60884-1, 3nd ed.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Black
Halogen free
No
Outer sheath
PVC

Dimensional characteristics

Dimensional characteristics

Approximate weight per piece
0.08 kg
Cable length
2 m
Conductor cross-section
0.75 mm²
Nominal outer diameter
5.0 mm
Number of cores
2

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
250/250 V
Rated current
2.5 A

Usage characteristics

Usage characteristics

Maximum operating temperature
70 °C
Oil resistance
No
Packaging
1 piece set
U.V resistance
Yes
