Betonghärdnings Kit CEE-DON 1400W
Betonghärdnings Kit CEE-DON 1400W
Komplett Kit med CEE-DON 1400W 34W/M
Läs mer- Artikelnr. : 13546309
 - E-nr. : 8957602
 - EAN : 7340074400027

Beskrivning
Beskrivning
Standarder
-
                                            ProduktIEC 60800; Nexans specification

The heating cables embedded in concrete and are used primarily to accelerate the curing of concrete, they can then be reconnected to temporarily heat the building.

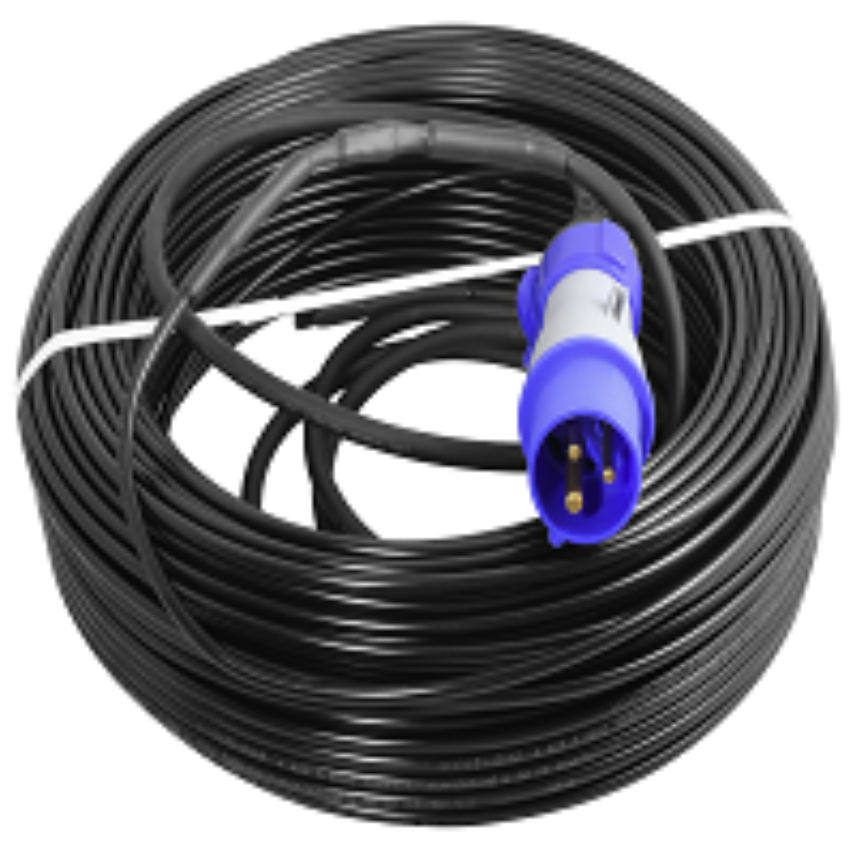

The system consists of a heating cable with integrated cold lead of 2.1 m and an affixed CEE 16A/230V or schuko 16A/230V. The outer diameter of the cable is 7 mm.
Recommended effects when curing concrete:
Outside temperature 0 to -5 ° C, 95W ²
Outside temperature -5 to -10 ° C, 110W m
Outside temperature -10 to -15 ° C, 130W m
Other conditions: Betongemp when molding +20 ° C.
The heat is turned on immediately after casting. Cure time 72 h.
Egenskaper
Egenskaper
Konstruktionsegenskaper
Konstruktionsegenskaper
                                                                Isolering, material


                                                                XLPE


                                                                Jordtråd


                                                                Copper


                                                                Mantel, material


                                                                PVC


                                                                Mantelfärg


                                                                Svart


                                                                Skärm


                                                                Längslagt AL/PE-band + förtent koppartråd


                                                                Typ av ledare


                                                                Round solid

                                                        Dimensionsegenskaper
Dimensionsegenskaper
                                                                Ytterdiameter, nom.


                                                                7,0 mm

                                                        Elektriska egenskaper
Elektriska egenskaper
                                                                Effekt


                                                                1400 W


                                                                Driftspänning


                                                                230 V


                                                                Resistans, max


                                                                27,6 Ohm


                                                                Resistans, min


                                                                25,9 Ohm


                                                                Resistans, nom


                                                                26,3 Ohm

                                                        Hanteringsinformation
Hanteringsinformation
                                                                Effekt


                                                                34 W/m


                                                                Kabellängd


                                                                42 m


                                                                Brandspridningsklass (flame)


                                                                N/A


                                                                Längd på kallkabel


                                                                1,5 m


                                                                Manteltemperatur vid drift, max


                                                                65 °C


                                                                Minsta böjradie vid förläggning


                                                                8 (xD)
